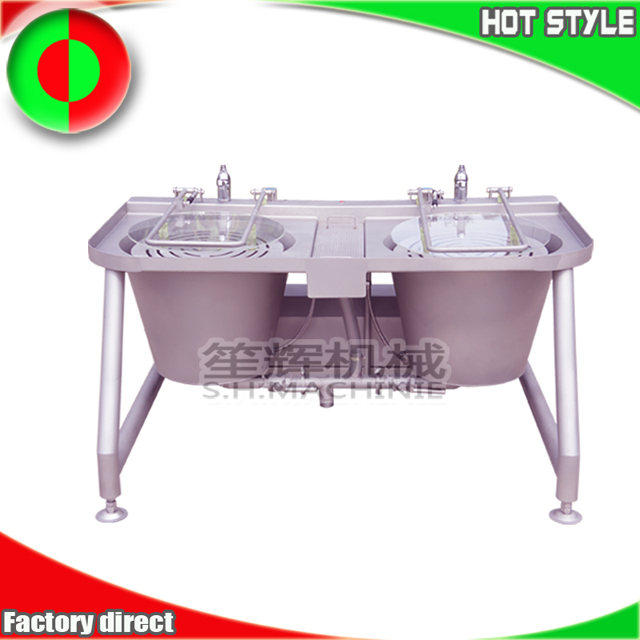

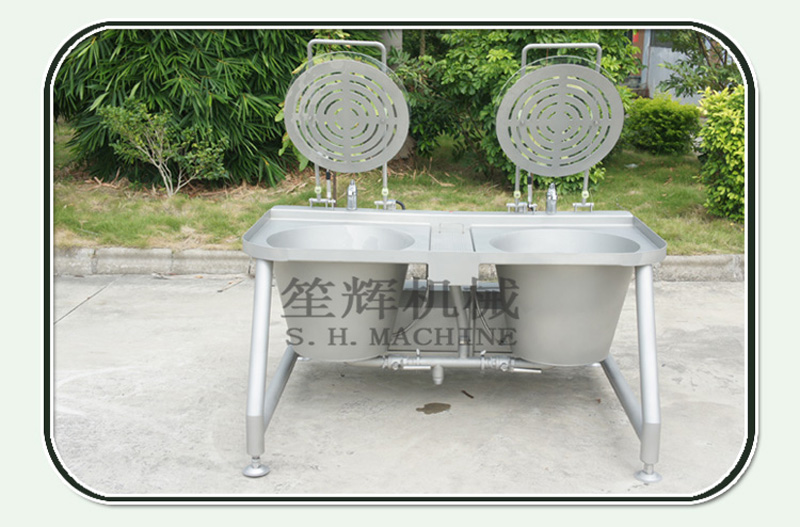

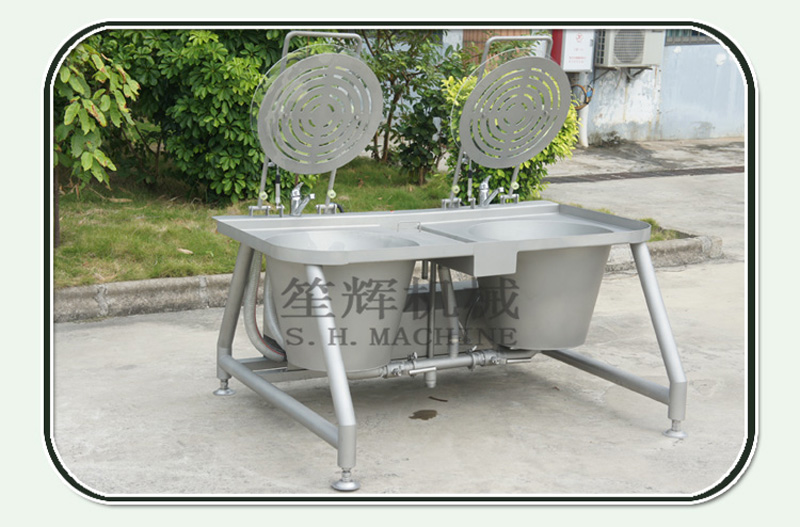

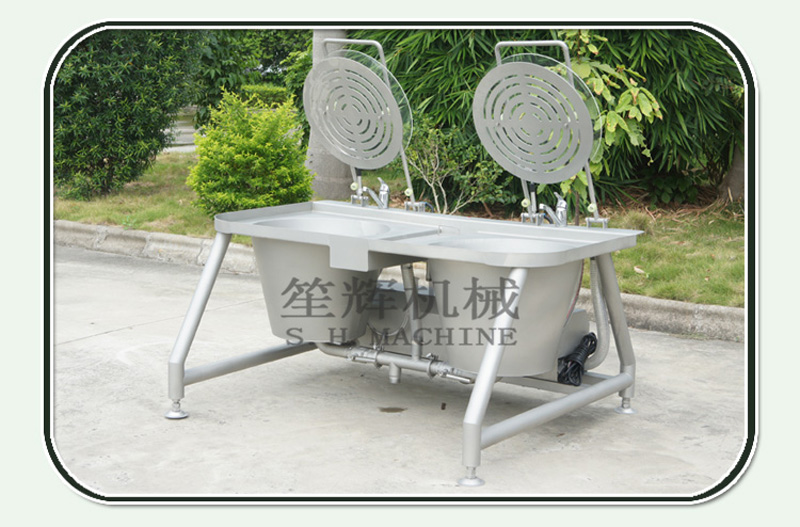

Double cylinder basket type bubble vegetable washing machine fruit cleaning machine ozone washer

Double-cylinder basket washing machine/double-cylinder vegetable washing machine Q-7V

Product material: full machine stainless steel (sandblast)

Product model: Q-7V

Power: 0.55KW

Voltage: 380V

Output: 10KG/time (double cylinder)

Weight: 175kg

Specifications: 1600×1200×880mm

The characteristics of the double-cylinder basket washing machine: 1. Simple and easy to clean design. The low height is convenient for workers to operate with less effort. 2. Lifting the lid stops, and closing the lid starts automatically. 3. Double air pump, double ozone. The cleaning power of the two cleaning cylinders can be adjusted independently. 4. The matching vegetable basket can be put directly into the matching dehydrator for dehydration. Greatly reduce material waste and discharge time. 5. With floating filter collection function. 6. Ultrasonic cleaning function can be installed.

working principle:

When cleaning, open the rotating lid assembly, put in the material basket filled with vegetables, open the faucet, after the water is full, put down the rotating lid assembly, the sensor receives the signal, start the fan assembly, ozone gas passes through the exhaust and drainage assembly pipeline, and the cylinder The bottom is sprayed out to form a bubbling effect. The materials are continuously tumbling and oscillating in the basket, bringing out the sediment inside, the faucet is constantly replenished with fresh water, and the impurities flow through the mesh of the rotating lid assembly to the filter assembly for collection, and the waste water passes through the pipeline Discharge to achieve the effect of cleaning and purification.

After cleaning, turn off the faucet, open the rotating lid assembly, the sensor receives the signal, turn off the fan assembly, the bubbling stops, take out the material basket and enter the next process.
