Automatic supermarket fresh vegetable packing machine metal detector large food pouch flow horizontal packaging processing line

Vegetable packaging production line/fruit and vegetable pillow packaging metal detection production line

The production line is non-standard customized, please consult for detailed technical parameters!

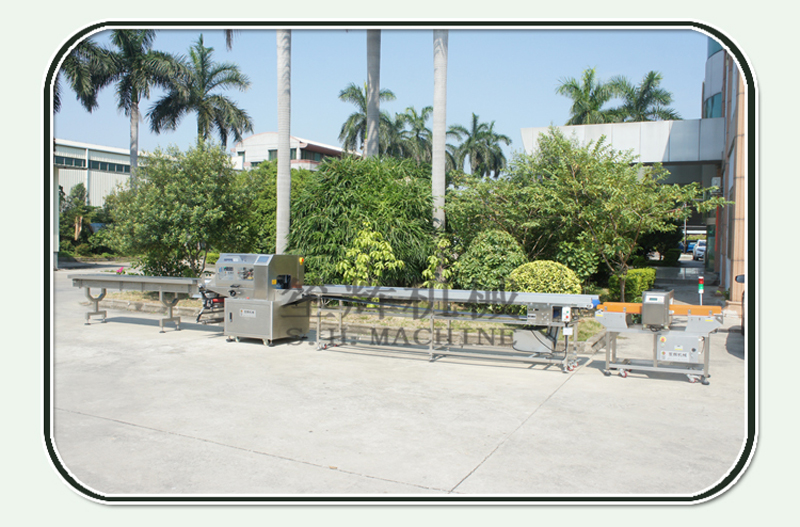

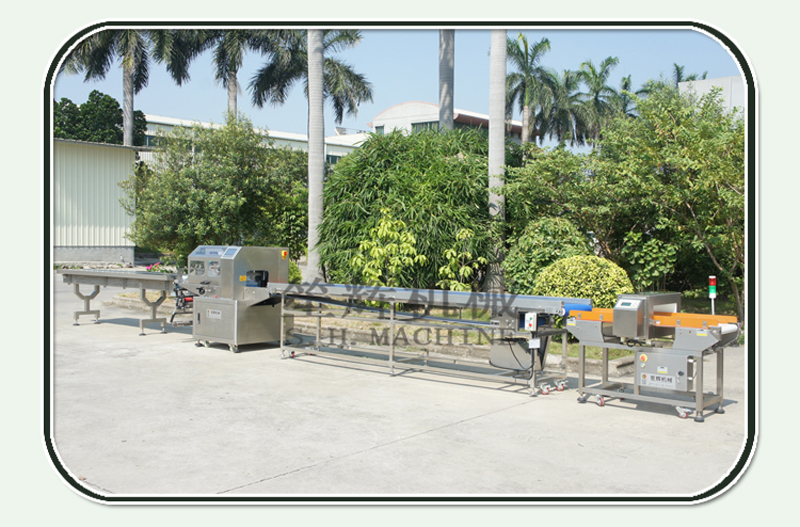

The vegetable packaging production line is mainly composed of a flat sorting table-pillow packaging machine-flat quality inspection conveyor-metal detector and other equipment to form a vegetable and fruit deep processing production line.

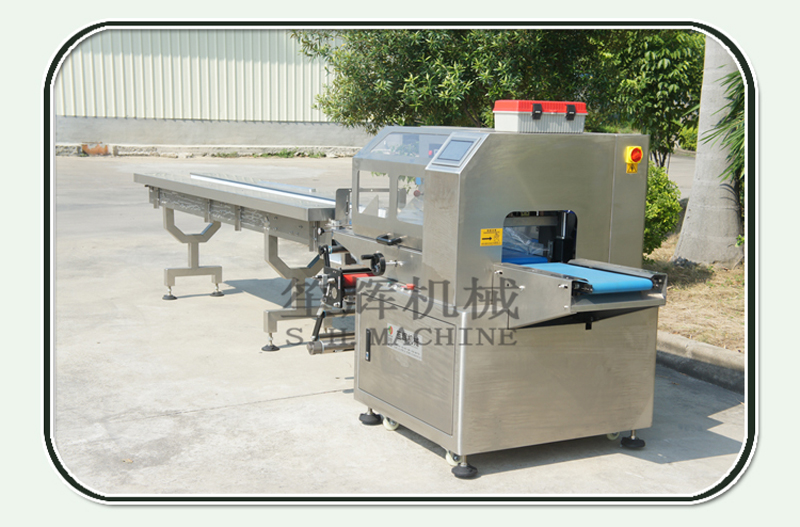

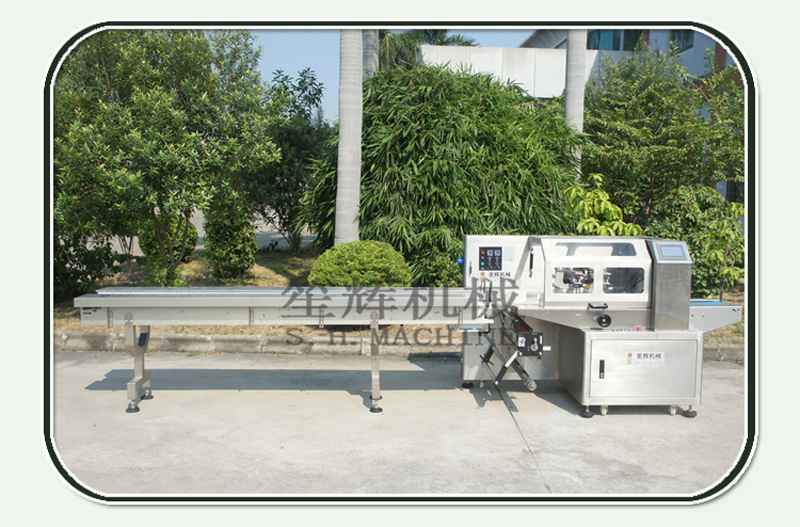

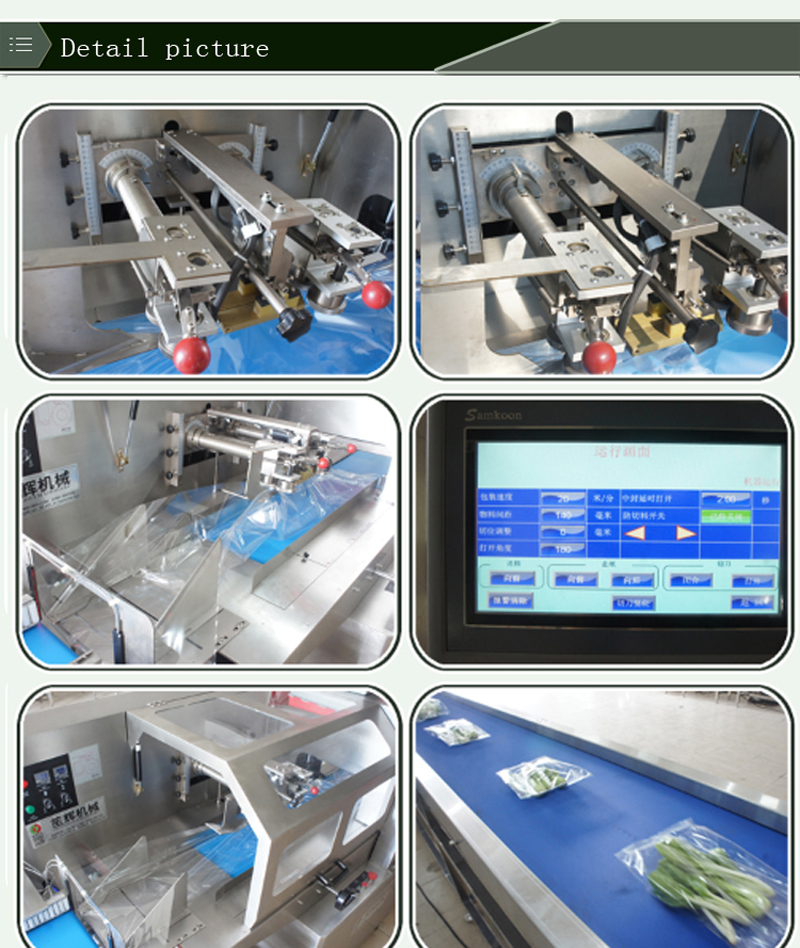

The packaging machine adopts servo motor and PLC control positioning stop function. It does not stick to the knife and does not waste film. The bag length is set and cut, and it automatically senses the length of vegetables and fruits. Continuous packaging; the man-machine interface and parameter setting are convenient and fast; the metal detector side is used The electromagnetic field is used to check the material being conveyed on the conveyor belt assembly line; when a metal signal is detected, an alarm is output and the principle of rejection is given, which is convenient to take effect. The production line is suitable for the packaging and metal detection removal of various fresh food distribution centers, vegetable supermarkets, and fresh food stores, such as: Shanghai greens, leeks, cucumbers, eggplants, sweet potato leaves, leafy vegetables, green vegetables, lettuce, peppers, Packaging quality inspection of various vegetables such as cabbage and loose vegetables.

Basic parameters of packaging machine:

Voltage power: 220V/ 3.6KW

Weight: 1160KG

Packaging film width: ≤600MM

Bag-making specifications: length 120-450MM, width 50-200MM

Product height: customizable

Roll film diameter: ≤320MM

Packing speed: 20-80 bag/MIN

Machine size: 4380*970*1500mm

Optional configuration: coding machine, aeration device, cake falling device, sorting machine, weighing labeling machine
