Continuous automatic five-section bone sawing machine meat processing equipment frozen meat cutting machine

Share to:
Fully automatic continuous five-section bone sawing machine JR-5X is a new type of cutting equipment for meat processing equipment. It adopts a new advanced structure in which multiple sets of saw wheels and multiple feeding belts synchronously convey materials, which realizes multiple cuts at one time
  • JR-5X
  • Shenghui machine
  • Shenghui-bone sawing machine
Availability:
Quantity:

Product Description

Continuous automatic five-section bone sawing machine meat processing equipment frozen meat cutting machine


Product name Continuous five segment bone sawing machine
Item model number JR-5X
Main motor power 1.5*2KW
Feeding motor power 0.25KW
Voltage 380V
Saw wheel diameter φ304×4; φ212×4
Saw blade line speed 23m/s
Saw blade length 3355mm×2; 1985mm×2
Pass width 290mm
Passing height 180mm
Specifications 1150×950×1850mm

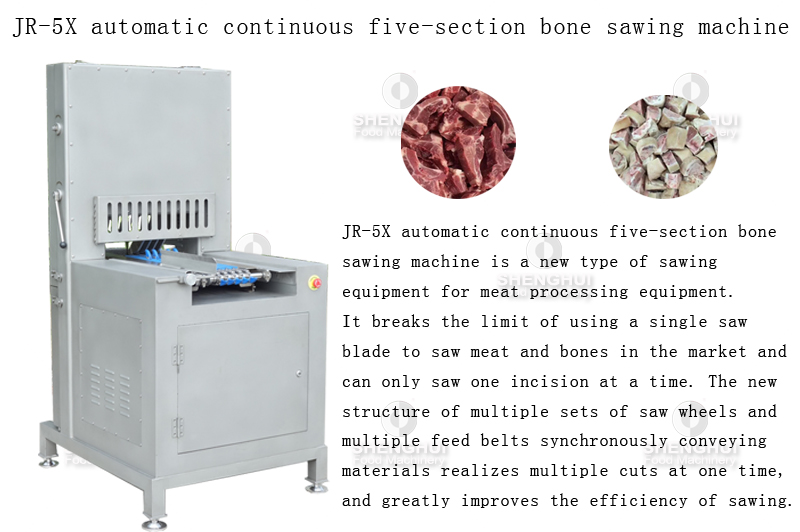

bone sawing equipment 1


Fully automatic continuous five-section bone sawing machine JR-5X is a new type of cutting equipment for meat processing equipment. It adopts a new advanced structure in which multiple sets of saw wheels and multiple feeding belts synchronously convey materials, which realizes multiple cuts at one time, greatly improves the efficiency of sawing, and ensures the safety of sawing. Safety and stability of the product. The speed of the conveyor belt of this machine can be adjusted infinitely according to the different products to be sawed, which can adapt to more diversified products; the main motor is controlled by a frequency converter, and the saw wheel realizes a slow start to ensure the smooth operation of the machine and improve the life of the saw blade; the overall machine The frame structure of thickened stainless steel plate is adopted. The main structure and shell are closed by thickened stainless steel plate. All moving parts are equipped with stainless steel protective covers to ensure the personal safety of operators during normal operation. The conveying part is arranged separately, using slide rails and positioning The pin is installed to achieve complete separation from the main body of the machine, which is convenient for removal and cleaning, and refuses sanitary dead corners.


Cutting effect

pork meat cutter

frozen meat cutter

Bone sawing machine

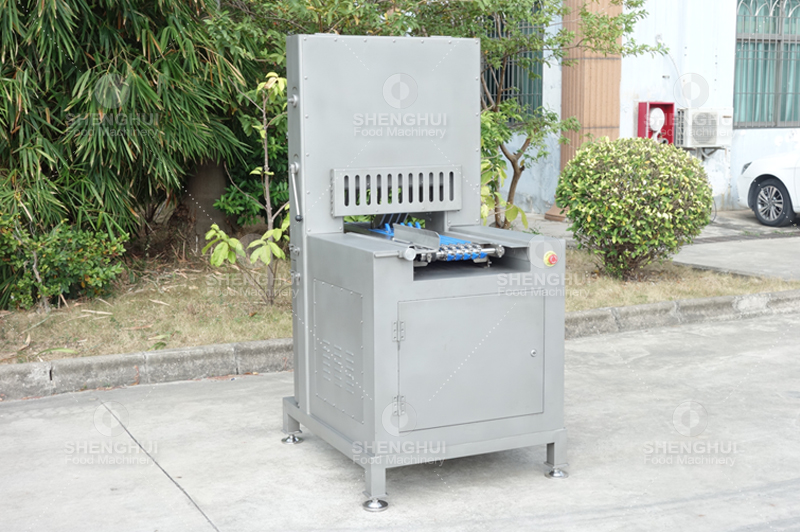

food processor

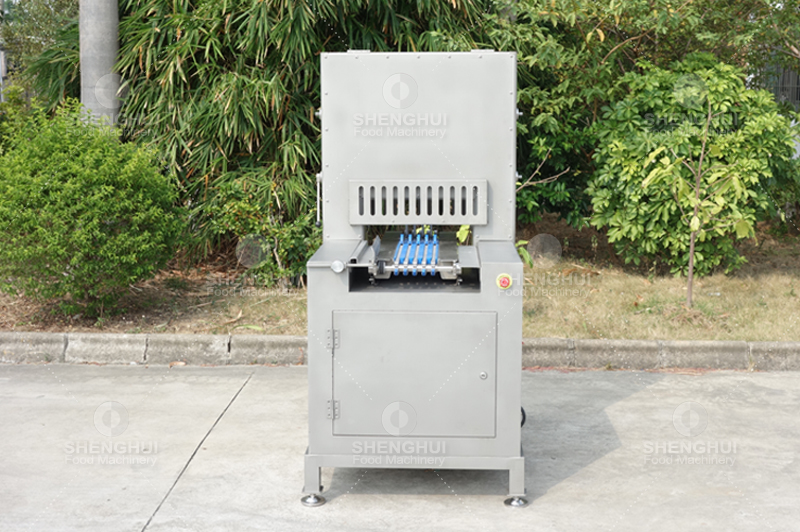

kitchen equipment

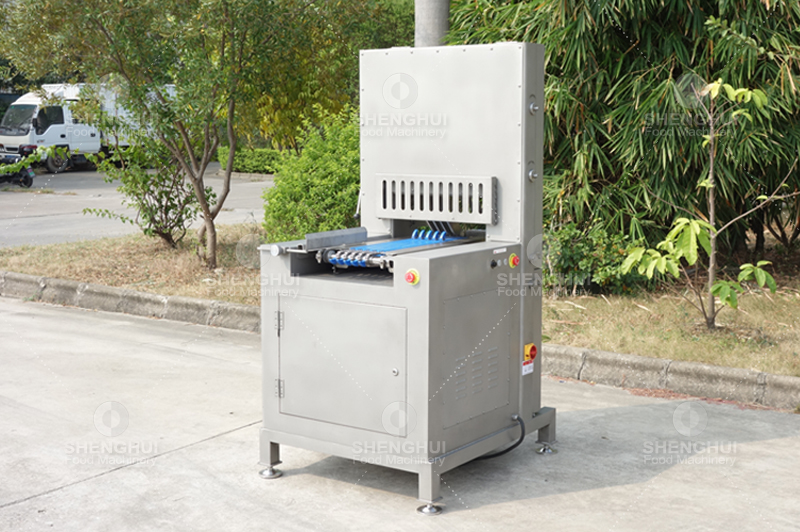

meat cutting machine

Details of frozen meat dicing machine

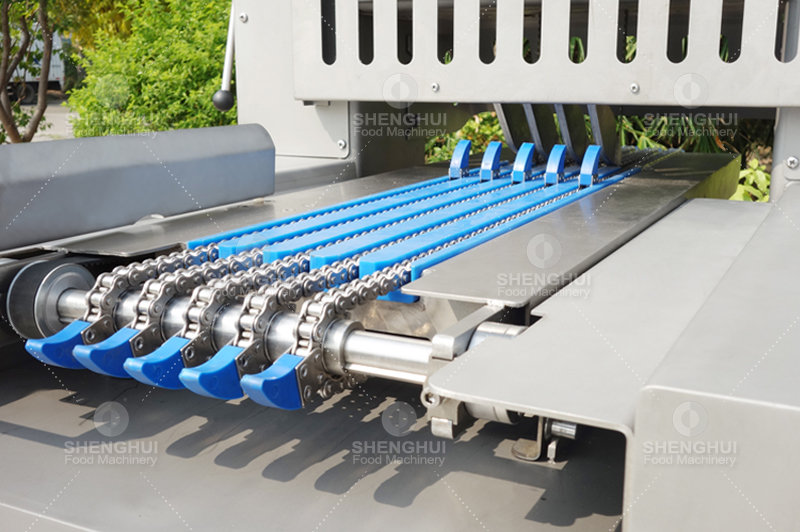

food equipment

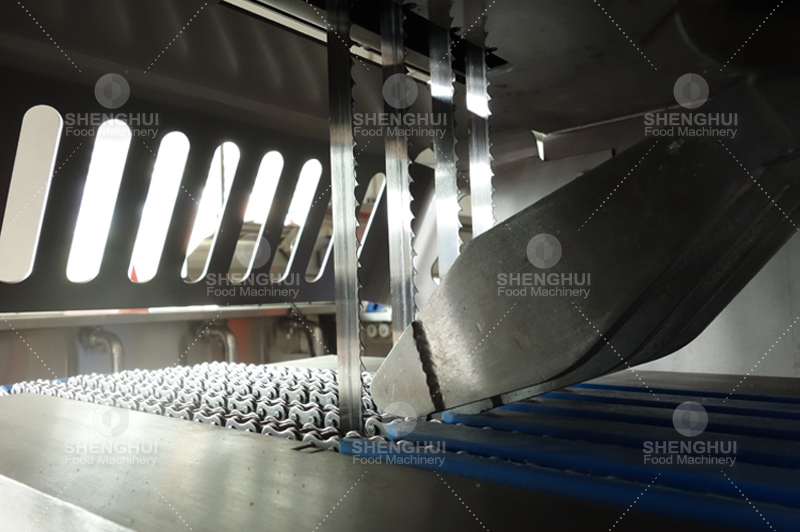

food equipment1

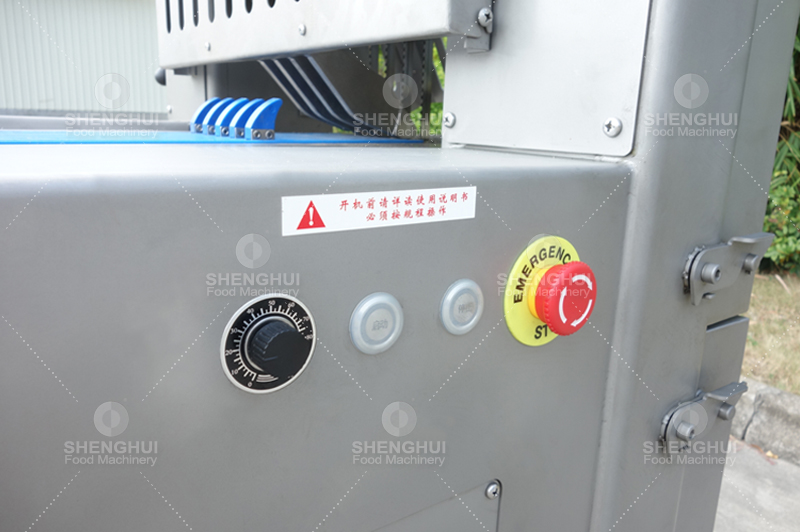

meat processing equipment

Continuous automatic five-section bone sawing machine meat processing equipment frozen meat cutting machineContinuous automatic five-section bone sawing machine meat processing equipment frozen meat cutting machineContinuous automatic five-section bone sawing machine meat processing equipment frozen meat cutting machine
