Stainless steel hydraulic vacuum meat tumbler production line

Share to:

The vacuum tumbler uses the principle of physical impact to tumble and knead the meat in a vacuum state by turning the barrel to allow the meat or the meat to be rolled up and down in the drum to achieve the massage and pickle functions. The whole machine is made of stainless steel and has a compact structure. Both ends of the drum adopt a spinning cap structure, which increases the beating space inside the drum, making the effect of the kneading product uniform, low noise, reliable performance, easy operation and higher efficiency.
   Suitable for large, medium and small meat food processing plants, used for processing meat foods such as ham, sausage, chicken products, beef and mutton products.

  • vacuum tumbler machine
  • Shenghui machine
  • Shenghui-vacuum tumbler machine
Quantity:

Product Description

Hydraulic tumbler GR-1700C & hydraulic loader SL-200C

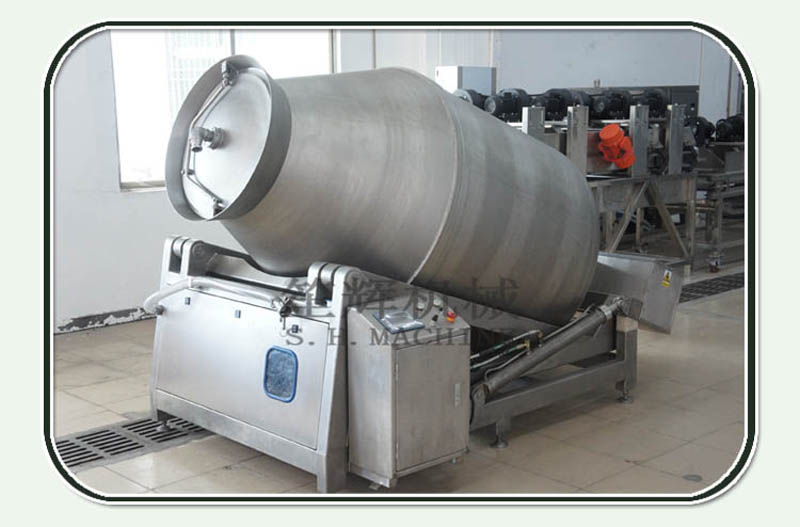

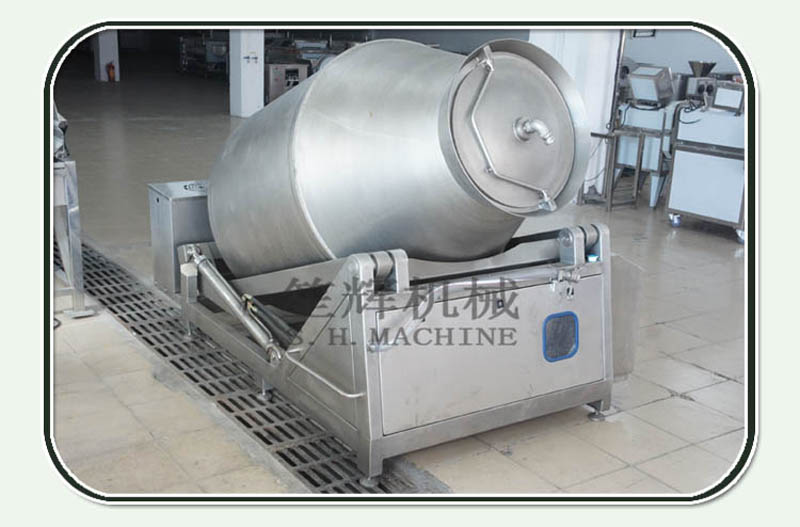

Hydraulic tumbler GR-1700C

Power: 7.5KW

Voltage: 380V

Output: 1.5 tons / time

Speed: 1-12 rpm

Volume: 1700L

Weight: 1000KG

Vacuum degree: -0.09MPa

Dimensions: 2570 * 1450 * 1730MM


 The GR series vacuum tumbler uses the principle of physical impact to tumble and knead the meat in a vacuum state by turning the barrel to allow the meat or the meat to be rolled up and down in the drum to achieve massage and pickling. The whole machine is made of stainless steel and has a compact structure. Both ends of the drum adopt a spinning cap structure, which increases the beating space inside the drum, making the effect of the kneading product uniform, low noise, reliable performance, easy operation and higher efficiency.

  Suitable for large, medium and small meat food processing plants, used for processing meat foods such as ham, sausage, chicken products, beef and mutton products. By rolling and kneading, the pickling liquid can be effectively absorbed, the meat quality and the auxiliary materials are evenly combined, so that the cut surface of the meat product is uniform in color, the taste of the inside and outside is uniform, the water retention of the meat product is improved, the taste of the product is more tender, and the color is naturally beautiful, thereby improving The quality of meat products can also greatly improve the yield and extend the shelf life of meat products.

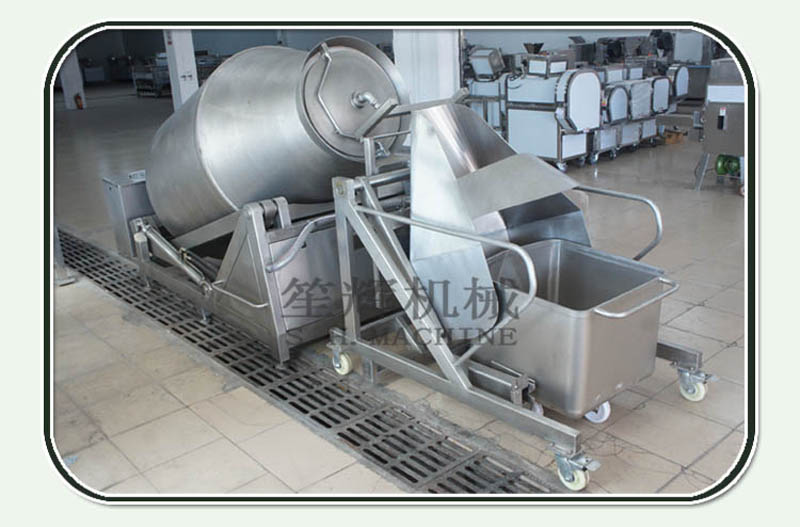

Hydraulic loader SL-200C

Power: 0.75KW

Lifting weight: 200KG

Lifting height: 1950MM

Dimensions: 1800 * 1000 * 1700MM

Standard small car: Size: 690 * 650 * 650mm, thickness of bottom 3mm, periphery 2mm, flat steel 10mm



  This hoist is suitable for large, medium and small meat food processing plants. It is a special equipment for providing materials for tumblers, enemas, mixers, meat grinders and other equipment. This machine is made of 304 stainless steel, and the equipment can be moved freely, which is more convenient and quick, reduces labor intensity and improves production efficiency.


  1. The machine can smoothly lift the 200L standard material cart to the designated position, and dump the material in the hopper cart into the designated equipment, which has significant effects on reducing labor intensity and improving production efficiency; 2. The whole machine is made of stainless steel, which is clean and beautiful. , Anti-corrosion and durable; 3, the machine runs smoothly, easy to clean, easy to operate, using dual stroke switch control; 4, the machine is mobile, more convenient to use; 5. adjustable height, wider range of application
