Commercial juicer for sale

Commercial juicer for sale

The spiral juicer  is suitable for squeezing fruit and vegetable juice， such as tomatoes, pineapples, apples and oranges and so on.

Equipment introduction

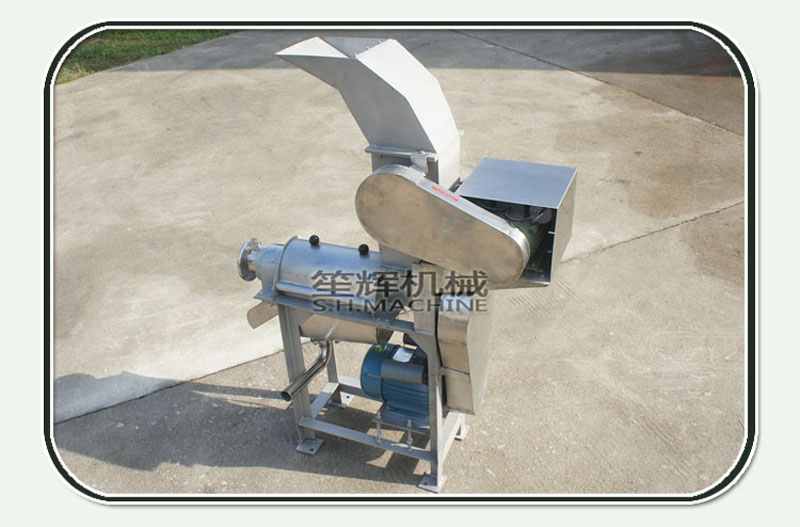

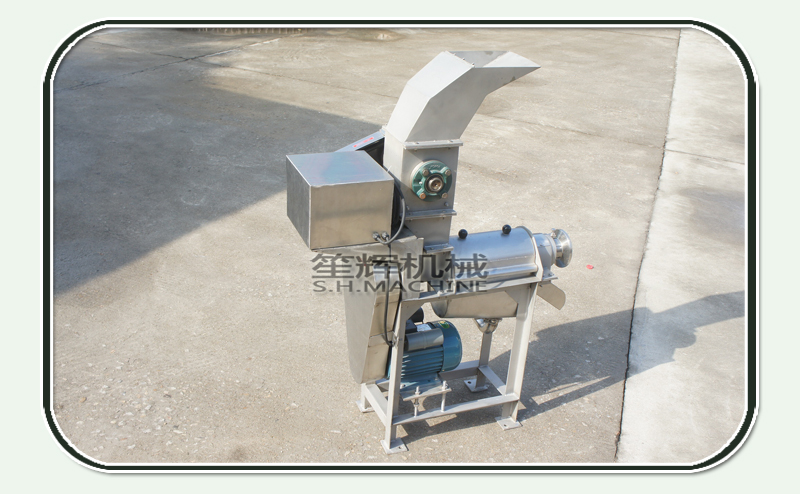

1.Structure:

 It is composed of front supporting seat, feeding hopper, screw, filter,sadie, rear support, the Pomace Draining groove   and other parts, the left end of the screw spindle is supported in the rolling bearing seat, the right end is supported in   the hand wheel bearing seat, Triangle pulley drive screw to work.                                                                                        2.Working principle:                                                                                                                                                               The main component of the equipment is a spiral. The bottom diameter of the spiral gradually increases along the exit direction of the slag, while the pitch gradually decreases. When the material is propelled by the spiral, the volume of the  spiral cavity is reduced to form the material squeezing. The raw material is fed into the hopper and pressed under the  helical propulsion. The squeezed juice flows through the strainer into the bottom juice holder, while the waste is  discharged through the annular gap formed between the spiral and the conical part of the pressure regulation. The  pressure head moves along the axial direction to adjust the size of the gap.

The details of machine

1.Feeding port plus comb-shaped silicone plate to prevent the material from flying out                                                    2.The pulp slag is separated and the effect is very good                                                                                                        3.Stainless steel plus sandblasting, solid and practical.
