Passion fruit processing machine juice extractor machine quotes

Share to:
Passion fruit juicer GZ-B2000 specially designed fruit cracking and separating equipment, which is specially designed for the separation and juice extraction of passion fruit, pomegranate, passion fruit and other fruits. It has the characteristics of novel structure and high energy-saving efficiency.
  • passion fruit juice machine
  • Shenghui machine
  • Shenghui-passion fruit juicer
Quantity:

Product Description

Passion fruit processing machine juice extractor machine quotes

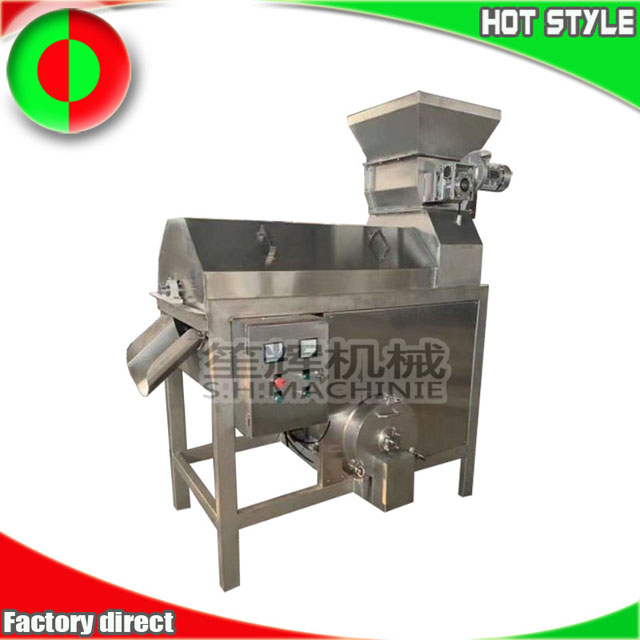

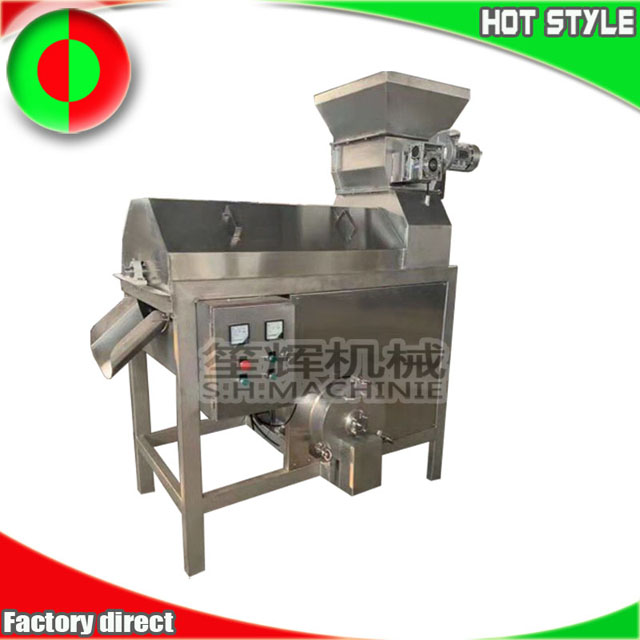

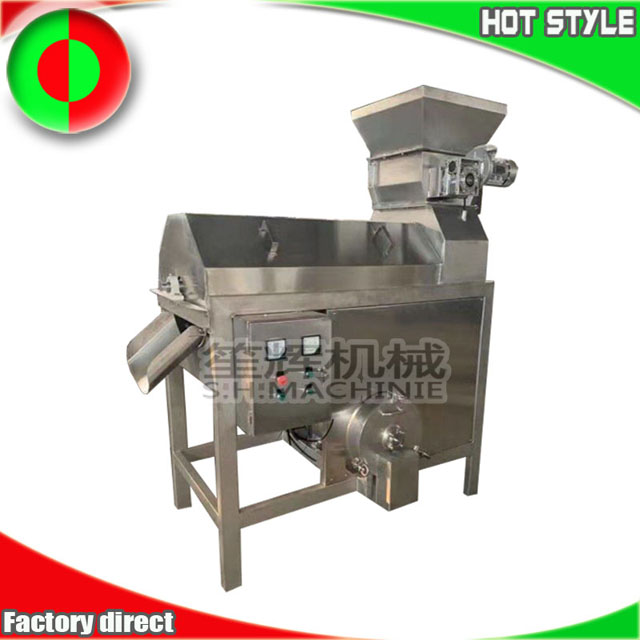

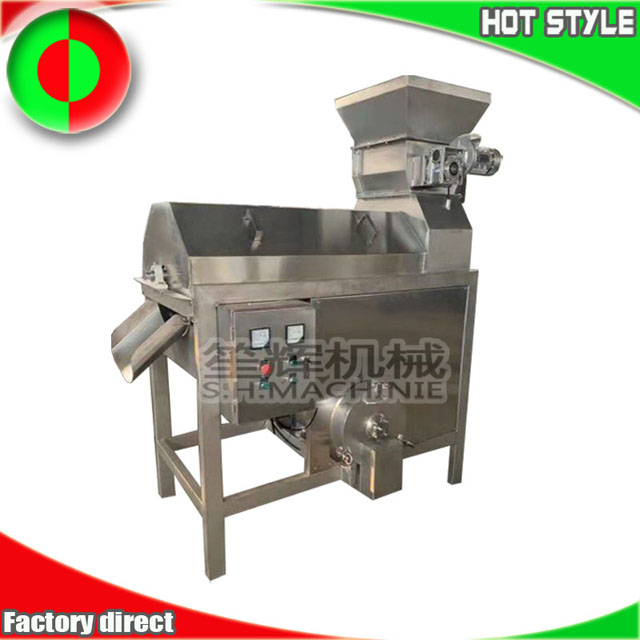

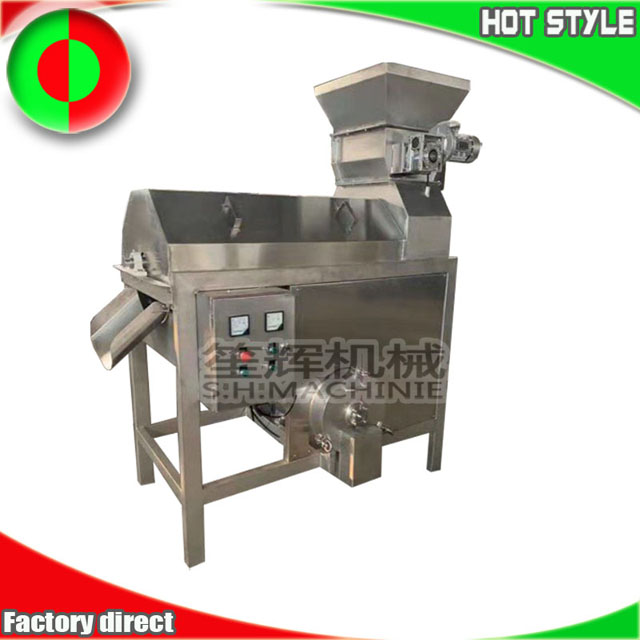

Passion Fruit Juicer GZ-B2000

Model: GZ-B2000

Power: 4.45KW

Voltage: 220V/380V 50HZ

Output: 1000-2000KG/H

Dimensions: 1900*1030*2180MM

Passion fruit juicer GZ-B2000 specially designed fruit cracking and separating equipment, which is specially designed for the separation and juice extraction of passion fruit, pomegranate, passion fruit and other fruits. It has the characteristics of novel structure and high energy-saving efficiency.

Working principle: The raw material enters the upper fruit breaking device from the hopper, and will be pressed open under the pressure between the two pressing rollers. After the rough fruit is broken, it enters the lower fruit breaking device. The lower fruit breaking device squeezes the fruit again, after two stages The squeezed fruit is separated from the basic shell and falls into the separation device. The upper and lower fruit-breaking rollers are of elastic structure with adjustable gap. Under the action of the stirring and conveying blade on the agitating shaft, the fruit that has broken the shell drops from the sieve hole, and is sent to the juicer by the spiral outside the screen to obtain the juice, and the peel is removed from the stirring conveying blade. The tail is discharged.

juicing machine

fruit processing equipment

juice extractor

juicer 3

passion fruit equipment

passion fruit juicer  passion fruit juice extractor machine   fruit processing machine
