JG-Z
Shenghui machine

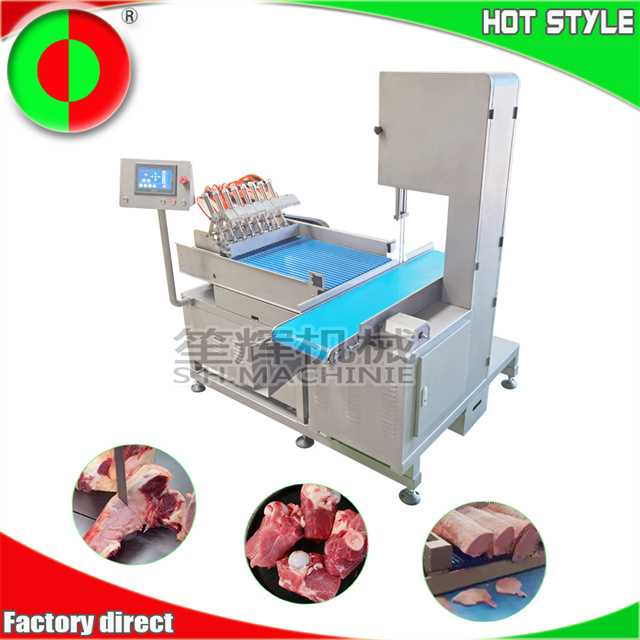

Shenghui- large bone sawing machine
| Quantity: | |
|---|---|
Product Description
Large continuous bone sawing machine frozen meat cutting machine frozen meat slicing machine
Product Name | Automatic bone sawing machine |
Model | JG-Z |
Voltage | 380V |
Power | 4.8kW |
Air Pressure | 0.6MPa |
Saw Blade Specifications | 3335 x 16" |
Linear Speed | 32m/s |
Maximum Cutting Thickness | 100mm |
Dimensional Accuracy | 0.1mm |
Maximum Height | 200mm |
Worktable Size | 650 x 530mm |
External Dimensions | 1750 * 1550 * 1850mm |

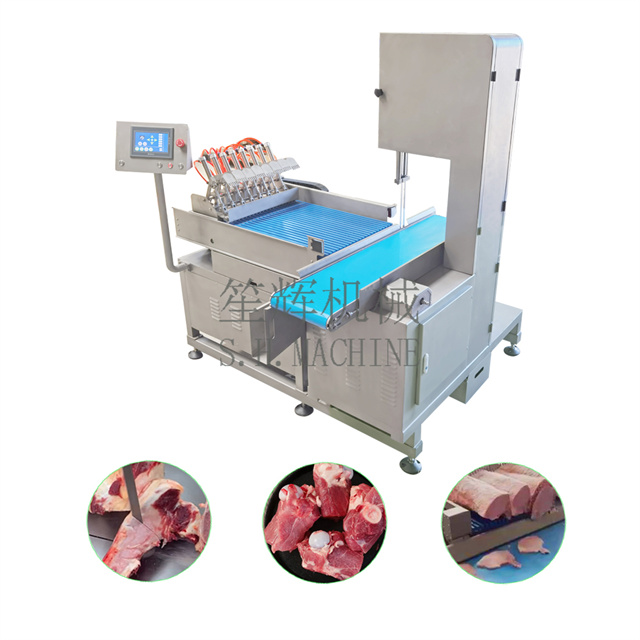

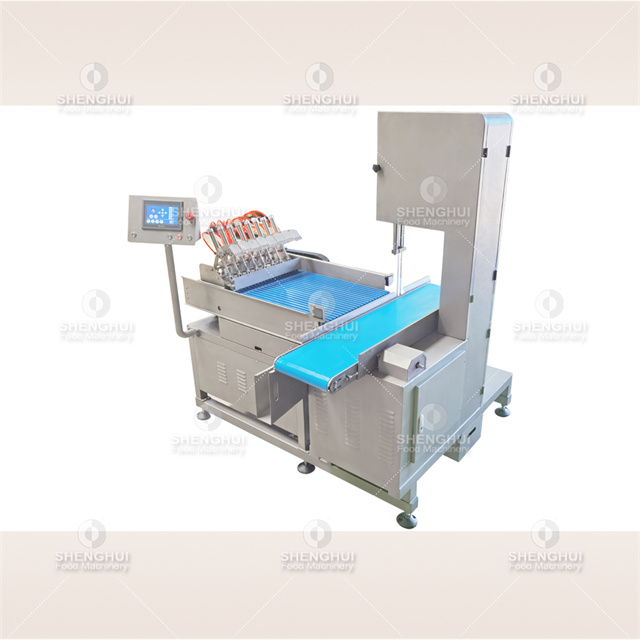

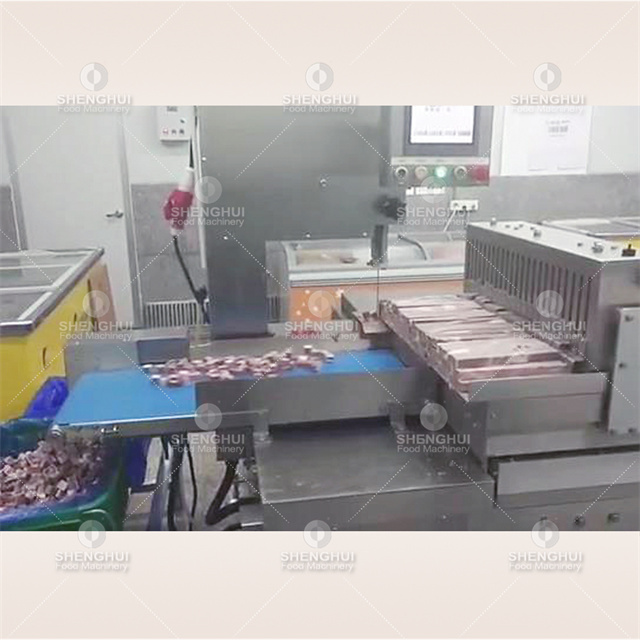

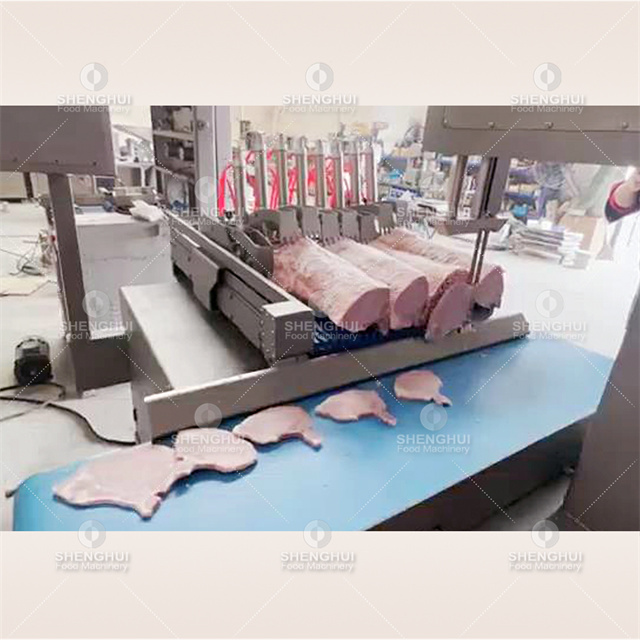

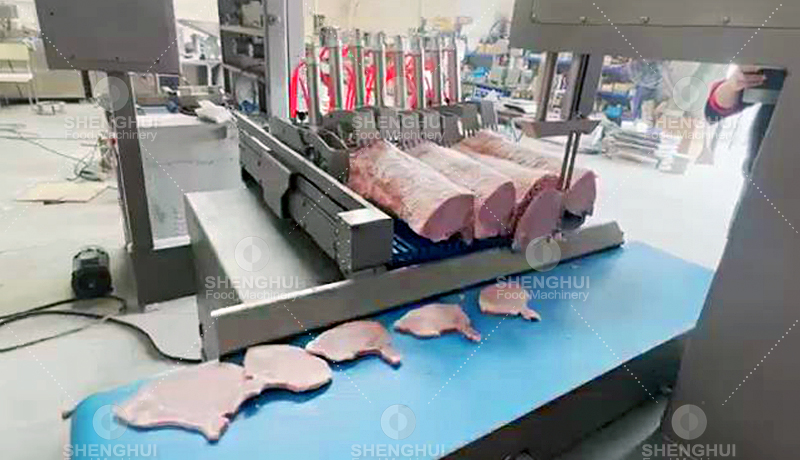

Automatic bone sawing machine consists of a frame, motor, circular saw, linear table, and electronically controlled work surface. It's suitable for processing various bone and frozen meat materials, including animal bones, frozen meat, hairtail bones, frozen fish, and ice cubes. It's sturdy, durable, and capable of long-term operation, ensuring clean meat and a smooth cut surface. Its waterproof design allows for quick cleaning (motor rated IP55, servo motor rated IP65). It features a human-machine interface and can be set to five memory functions. Feeding is via a servo motor.
