Large frozen meat grinding machine meat mincer fresh fish meat grinder meat processing equipment

Share to:
Large fresh meat and frozen meat grinder is a kind of material crushing equipment commonly used in meat product processing. It can be equipped with mesh plates with different apertures according to the requirements of meat product processing technology to cut raw meat into particles of different sizes, which is suitable for large, medium and small meat food processing plants.
  • JR-250
  • Shenghui machine
  • Shenghui-large frozen meat grinding machine
Availability:
Quantity:

Product Description

Large frozen meat grinding machine meat mincer fresh fish meat grinder meat processing equipment


Product name Large frozen meat grinder
Model JR-250
Power 37KW
Voltage 380V
Speed 150R/MIN
Minimum temperature of minced meat - 5~- 18 ℃
Operating Weight 1235KG
Capacity 6T/H
Overall dimension 1800×1100×1650MM

meat grinder


JR-250 meat grinder is a kind of material crushing equipment commonly used in meat product processing. It can be equipped with mesh plates with different apertures according to the requirements of meat product processing technology to cut raw meat into various sizes of particles. The machine adopts partial feeding, the discharge is fast and smooth, and the temperature of the meat filling after cutting is small. The whole machine is made of stainless steel, especially the working screw, which is cast from stainless steel as a whole, with high strength and no deformation.

It is suitable for large, medium and small meat food processing plants. It can grind block meat (frozen meat) and food to particles of φ3mm---φ25mm, which is easy to clean. The screw, mesh and blade of the meat grinder have unique characteristics. The special structure makes the processed meat pellets have the characteristics of low temperature rise and clear pellets. It is an ideal equipment for the processing of meat products. This machine can directly process boneless meat pieces that have not been thawed at -5ºC into particles of different diameters. Ground frozen meat at -5°C without damaging the structure of muscle fibers. There is no need to thaw, reducing the loss of nutrients and protein of the meat, and it can also grind the tempered meat to do the preliminary work for chopping or stirring.

Performance characteristics
1. Good versatility, wide application range and high production efficiency;
2. It has the function of minced meat, which saves time, effort, freshness and quality;
3. The cutting process takes a short time and the temperature rise is low, which is conducive to preservation and prolongs the shelf life;

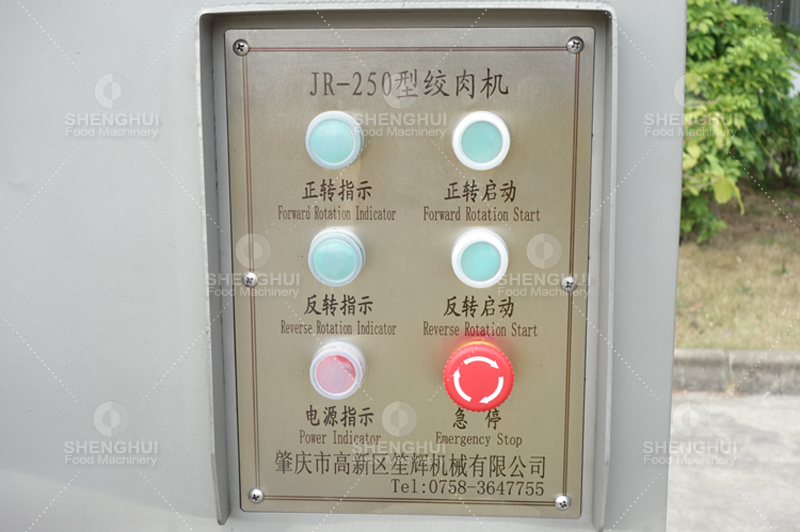

4. The function of forward and reverse rotation makes the possibility of blocking the meat grinder zero;
5. The perforated plate combination and the single and double reamer combination are more suitable for the requirements of various meat products;
6. Beautiful appearance, reasonable structure, stable and reliable mechanical properties;
7. The transmission speed is stable, the components are easy to disassemble and assemble, and the noise is low.
