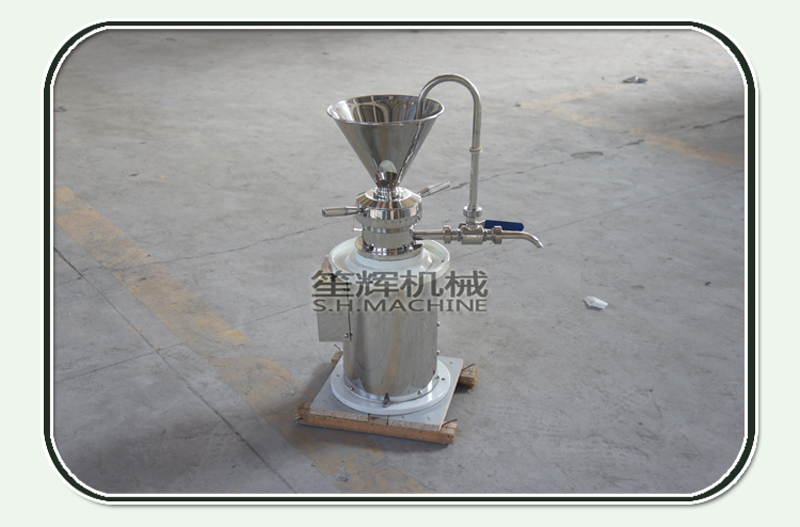

Peanut butter colloid grinder machine

Peanut butter colloid grinder machine

JTM series of colloid mill working principle is: tapered rotor high-speed rotation, and form the  relative movement of the cone-shaped stator, when the food goes through the stator and rotor ring gap, under the action of gravity and centrifugal force, form a huge shear force, friction, high frequency oscillation effect, to achieve effective separation, crushing powder, mixing and other purposes, making the food effective fine.

JTM series of colloidal grinder is the first choice for ultra-fine processing equipment of fluid materials and softening materials It's stable performance, simple operation, easy washing and disassembling, long life, easy maintenance. This series of machines are with paiting housing, a variety of specifications for opion with full range. The main working parts of the stator and rotor are excellent processing, with special heat treatment, high hardness, good wear resistance, greatly improve the machine life,they are easy disassembling, fineness adjustable,with three-stage assembling structure. The longer grindingtime for material, the better grinding effect. The different materials requires different fineness, there are different materials of stator and rotor for optoin. It's widely used in food processing plants, daily chemical plants and so on.

Customized for for full stainless steel material .                                                                                                                      Colloid mill usage:

All kinds of fruit fillings, bean paste fillings and so on;

All kinds of jam, peanut butter, sesame paste, salad sauce, chili sauce and so on

All kinds of condiments: chicken, fragrance and so on

All kinds of liquid: milk products, ice cream, butter, fruit juice and so on

Other food: konjac gum, konjac powder, emulsified pig skin, emulsified chicken bone mud and so on

Can also be used for other household chemicals, industrial chemicals and so on.

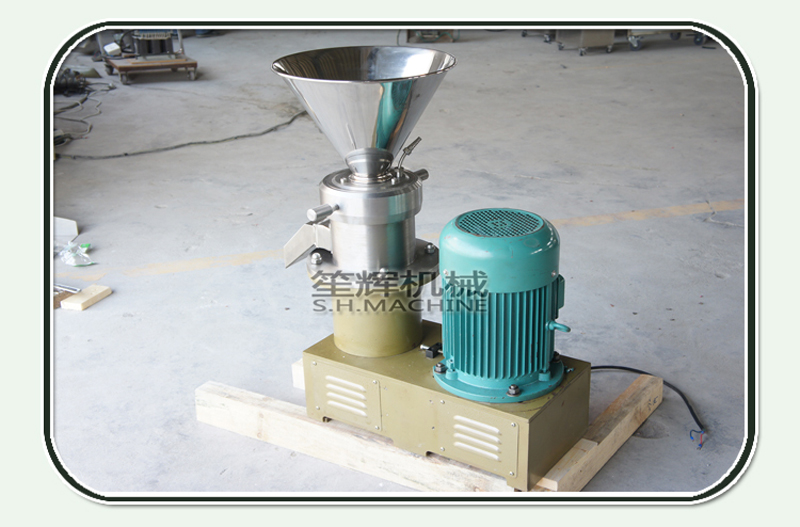

The details of machine

1. Funnel-type food inlet, the material not easy to splash.                                                                                         2.Thicker rotor and stator, strong and durable.
